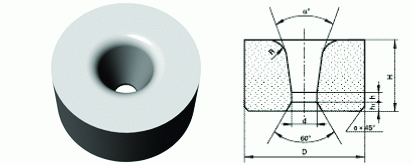

Tungsten Karbid Stirbt Typ 13

Tungsten Karbid Stirbt

mm

Typ
Dimensions
D
H
d
h
h1
R
αo
13-
30.00
21.00
3.70~9.60
1.50~4.00
3.00
5.00
14
40.00
25.00
10.00~15.00
5.00
4.00
16
50.00
28.00
16.00~24.50
5.50~6.00
4.50
60.00
35.00
25.00~34.50
7.00~7.50
6.00
6.00
18
75.00
35.50~43.50
8.00
90.00
45.00~57.00
9.00~10.00
20
110.00
40.00
59.00~69.00
10.00~11.00
140.00
50.00
71.00~84.00
12.00
