BS Heading Die

Name: BS Heading Die
Usage: Zur Reduzierung der Durchmesser der Muttern

Die Rohlinge für die Verringerung der Durchmesser der Muttern

     Punching Dies


Type

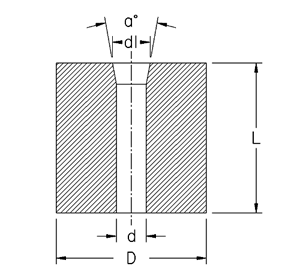

Dimension(㎜)

Type

Dimension(㎜)

d

D

L

d1

α°

d

D

L

d1

α°

BS2114-

2.1

14

15~30

2.5

20

BS8430-

8.4

30

25~54

9.3

20

BS2116-

2.1

16

15~30

2.5

BS10030-

10.0

30

14~20

11.4

BS3114-

3.1

14

15~30

3.5

BS10228-

10.2

28

25~54

11.4

BS3116-

3.1

16

15~30

3.5

BS10230-

10.2

30

25~54

11.4

BS3914-

3.9

14

15~35

4.5

BS11940-

11.9

40

30~40

13.2

BS3916-

3.9

16

15~35

4.5

BS12040-

12.0

40

10~14

13.4

BS4516-

4.5

16

10~20

5.9

BS14040-

14.0

40

14~20

15.4

BS4716-

4.7

16

15~35

5.4

BS17545-

17.5

45

14~20

19.3

BS4718-

4.7

18

20~35

5.4

BS19545-

19.5

45

20~30

21.25

BS6520-

6.5

20

20~42

7.2

BS21050-

21.0

50

20~30

22.75

BS6522-

6.5

22

10~42

7.9

BS24060-

24.0

60

25~30

25.75

BS8030-

8.0

30

10~20

9.4

BS26560-

26.5

60

25~30

28.63

12

BS8426-

8.4

26

25~54

9.3

BS32070-

32.0

70

25~30

34.13
