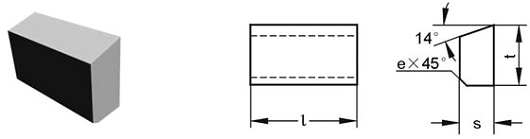

Сварные наконечники - Тип A1

Сварные наконечники - Тип A1
Тип
Размеры (мм)
Размеры (мм)
l
t
s
e
YG6
YG8
YT5
YT14
A106
6.0
5.0
2.5
/
1.1
1.1
1.0
0.9
A108
8.0
7.0
3.0
/
2.6
2.5
2.1
1.9
A110
10.0
6.0
3.5
0.8
2.9
2.8
2.4
2.2
A112
12.0
10.0
4.0
0.8
6.8
6.6
5.7
5.2
A114
14.0
12.0
4.5
0.8
10.7
10.5
8.9
8.2
A116
16.0
10.0
5.5
0.8
12.3
12.0
10.5
9.8
A118
18.0
12.0
7.0
0.8
21.3
20.8
17.5
16.3
A118A
18.0
16.0
6.0
0.8
24.7
24.3
21.0
19.7
A120
20.0
12.0
7.0
0.8
23.2
22.8
20.0
18.6
A122
22.0
15.0
8.5
0.8
39.2
38.5
33.0
30.6
A122A
22.0
18.0
7.0
0.8
39.2
38.5
32.8
30.5
A125
25.0
15.0
8.5
0.8
44.5
43.7
36.5
34.0
A125A
25.0
20.0
10.0
0.8
71.0
69.8
58.0
53.8
A130
30.0
16.0
10.0
0.8
66.4
65.3
56.5
51.7
A136
36.0
20.0
10.0
0.8
98.2
96.8
81.0
75.2
A140
40.0
18.0
10.5
1.2
105.6
103.8
88.0
81.7
A150
50.0
20.0
10.5
1.2
149.0
146.0
125.0
116.0
A160
60.0
22.0
10.5
1.2
197.0
193.0
168.0
156.0
A170
70.0
25.0
12.0
1.2
298.0
293.0
257.0
239.0
