Brasées Conseils-Type E3

Conseils brasées Type E3
Type

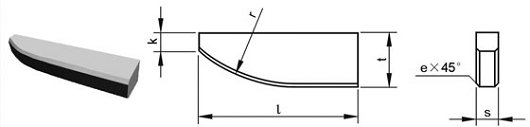

Dimension(mm)
Poids unitaire environ(g)
l
t
s
k
r
e
YG6
YG8
YT5
YT14
E312
12.0
6.0
1.5
1.5
20.0
/
1.3
1.3
1.0
0.9
E315
15.0
3.5
2.0
1.5
20.0
/
1.4
1.4
1.2
1.1
E315A
15.0
7.0
2.0
2.5
25.0
/
2.4
2.3
2.1
2.0
E320
20.0
4.5
2.5
2.5
25.0
/
2.9
2.8
2.7
2.5
E320A
20.0
6.0
3.5
2.5
25.0
0.5
5.3
5.3
4.2
3.9
E320B
20.0
9.0
2.5
3.5
30.0
0.5
5.6
5.6
4.5
4.1
E325
25.0
8.0
3.0
3.5
30.0
0.5
7.1
7.1
6.9
6.2
E325A
25.0
15.0
3.0
3.5
30.0
0.5
13.1
12.9
11.2
10.0
E330
30.0
10.0
4.0
3.5
30.0
0.5
15.3
15.0
12.9
11.7
E330A
30.0
21.0
4.0
3.5
30.0
0.5
29.5
29.2
24.5
21.9
E335A
35.0
10.0
5.0
3.5
30.0
0.8
22.9
22.5
19.5
17.6
E340
40.0
12.0
5.0
3.5
30.0
0.8
26.1
26.8
22.0
20.2
E345
45.0
12.0
6.0
3.5
30.0
0.8
41.6
41.0
35.0
31.6
