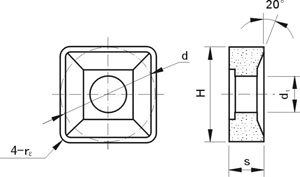

Sont Fixés Mécaniquement Inserts-Type 4G
 |
 |
Type |
Dimension(mm) |
Poids unitaire environ(g) |
||||||||
d |
s |
r |
a≈ |
d1 |
H |
YG6 |
YG8 |
YT5 |
YT14 |
|
41005F |
10.0 |
3.5 |
0.5 |
2.4 |
4.2 |
10.0 |
4.1 |
4.0 |
3.4 |
3.0 |
41005FL |
||||||||||
41305F |
13.0 |
4.5 |
0.5 |
3.4 |
5.2 |
13.0 |
8.9 |
8.7 |
7.7 |
6.8 |
41305FL |
||||||||||
41605F |
16.0 |
5.5 |
0.5 |
4.4 |
6.2 |
16.0 |
16.3 |
16.0 |
14.4 |
12.8 |
41605FL |
||||||||||
41905F |
19.0 |
7.0 |
0.5 |
5.4 |
7.2 |
19.0 |
30.0 |
29.5 |
26.4 |
23.5 |
41905FL |
||||||||||
