BP-Hexad-Die

Nome: BP Hexad Die
Grau:LC30 LC40 LC50 LC60 LC70 LC80
Usage:Para fazer as porcas hexagonais

Combinação de branco morrer para fazer porcas hexagonais

Punching Dies

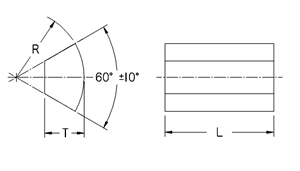

Tipo Dimensão(mm) Tipo Dimensão(mm)
R T L R T L
BP1100621 11.0 6 21 BP2501432 25.0 14.0 32
BP1100721 11.0 7 21 BP2601223 26.0 12.5 23
BP1300621 13.0 6.5 21 BP2601237 26.0 12.0 37
BP1500820 15.0 8 20 BP2751436 27.5 14.0 36
BP1601220 16.0 12 20 BP2801132 28.0 11.0 23
BP1800921 18.0 9 21 BP2801323 28.0 13.0 23
BP1801021 18.0 10 21 BP2801143 28.0 11.0 43
BP1800929 18.0 9 29 BP2801343 28.0 13.0 43
BP1801029 18.0 10 29 BP2901835 29.0 18.0 35
BP2001028 20.0 10.5 28 BP3001442 30.0 14.0 42
BP2001128 20.0 11.5 28 BP3001542 30.0 15.0 42
BP2251328 22.5 13.0 28 BP3101347 31.0 13.0 47
BP2251428 22.5 14.0 28 BP3251446 32.5 14.5 46
BP2301121 23.0 11.0 21 BP3301226 33.0 12.5 26
BP2301221 23.0 12.5 21 BP3301251 33.0 12.5 51
BP2301133 23.0 11.0 33 BP3601326 36.0 13.0 26
BP2301233 23.0 12.5 33 BP3601358 36.0 13.0 56
BP2501332 25.0 13.0 32
