A Series of Sealed Washer
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |
STH-P1 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Sealing |
Size Range |
Ø D |
Ø d |
H |
a |
| 20-100 |
10-60 |
10-30 |
60 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |
STH-P2 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many mechanical sealing |
Size Range |
Ø D |
Ø d |
H |
| 30-100 |
10-160 |
10-50 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |
STH-P3 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many shaft sealing |
Size Range |
Ø D |
Ø d |
H |
| 30-160 |
10-100 |
10-30 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |
STH-P4 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many sealing |
Size Range |
Ø D |
Ø d |
H |
| 50-120 |
20-80 |
10-30 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |

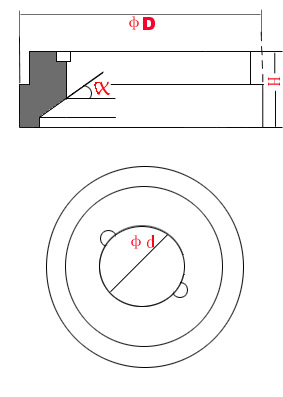

STH-Y1 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many mechanical sealing |
Size Range |
Ø D |
Ø d |
H |
| 50-100 |
30-60 |
10-30 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |

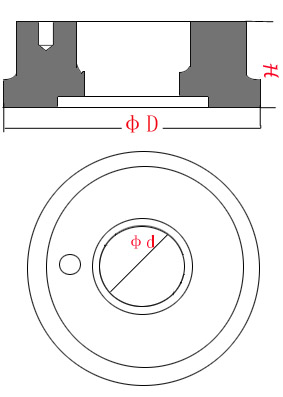

STH-Y2 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many sealing |
Size Range |
Ø D |
Ø d |
H |
| 30-200 |
10-160 |
10-30 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |

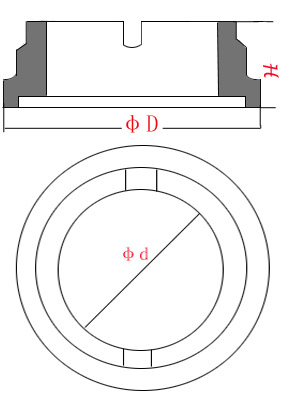

STH-Y3 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many shaft sealing |
Size Range |
Ø D |
Ø d |
H |
| 30-160 |
10-100 |
10-30 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |

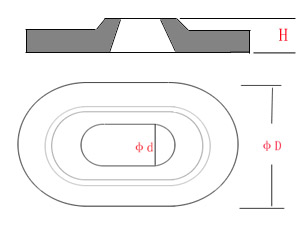

STH-Y4 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many mechanical sealing |
Size Range |
Ø D |
Ø d |
H |
| 20-60 |
4-44 |
5-10 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |
STH-Y5 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many sealing |
Size Range |
Ø D |
Ø d |
H |
| 30-200 |
10-160 |
10-30 |
|
 |
| Name |
Seriesand Model No. |
| Sealed Washer |

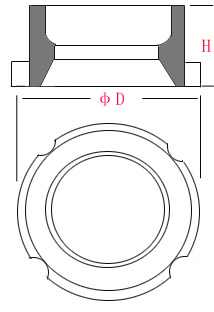

STH-Y6 |
| Materials |
Applications |
B4C ,SiC ,Tungsten Carbide |
Many mechanical sealing |
Size Range |
Ø D |
Ø d |
H |
| 30-200 |
15-160 |
10-30 |
|
|
