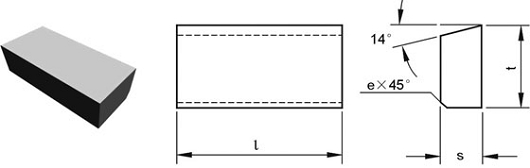

เชื่อมเคล็ดลับ D2-ประเภท

Consejos Soldadas Type D2
ชนิด
มิติ(mm)
หน่วยน้ำหนักประมาณ(g)
l
t
s
e
YG6
YG8
YT5
YT14
D206
6.0
7.0
3.0
/
1.7
1.6
1.5
1.4
D208
8.0
4.0
3.0
/
1.5
1.4
1.2
1.1
D210
10.0
5.0
3.0
/
2.3
2.2
1.8
1.7
D210A
10.0
10.0
3.0
/
4.5
4.4
3.9
3.6
D212
12.0
6.0
3.0
/
3.3
3.2
2.6
2.4
D212A
12.0
12.0
3.5
0.8
7.2
7.1
6.1
5.6
D214
14.0
7.0
3.5
0.8
4.8
4.7
4.0
3.7
D214A
14.0
12.0
3.5
0.8
8.4
8.3
7.2
6.7
D216
16.0
7.0
3.5
0.8
5.3
5.2
4.6
4.4
D216A
16.0
12.0
3.5
0.8
9.6
9.4
8.2
7.6
D218
18.0
5.0
3.0
/
4.2
4.1
3.5
3.1
D218A
18.0
7.0
3.5
0.8
6.2
6.0
5.2
4.8
D218B
18.0
12.0
3.5
0.8
10.7
10.5
9.5
8.8
D220
20.0
10.0
4.0
0.8
11.3
11.1
9.8
9.1
D222
22.0
6.0
3.0
/
5.9
5.8
5.2
4.6
D222A
22.0
14.0
4.0
0.8
17.6
17.3
15.3
14.4
D224
24.0
14.0
4.0
0.8
18.9
18.7
16.2
15.0
D226
26.0

10.0

5.0
0.8
18.1
17.8
15.5
14.0
D226A
26.0
14.0
5.0
0.8
25.4
25.0
22.5
20.9
D228
28.0
10.0
4.0
0.8
15.7
15.4
13.7
12.1
D228A
28.0
14.0
4.0
0.8
22.5
22.3
20.2
17.5
D230
30.0
14.0
5.0
0.8
30.2
29.6
26.0
24.2
D232
32.0
12.0
5.0
0.8
27.3
27.0
23.7
21.0
D232A
32.0
14.0
4.0
0.8
25.3
25.0
22.5
20.9
D236
36.0
14.0
4.0
0.8
34.0
33.4
29.3
26.0
D238
38.0
12.0
5.0
0.8
32.9
32.5
28.2
25.0
D240
40.0
14.0
5.0
0.8
39.3
39.1
35.7
32.0
D246
46.0
14.0
5.0
0.8
48.5
47.5
41.7
37.0
