Tungsten Heavy Metal Target

Tungsten heavy metal target is formed by sintering tungsten powder. In most cases, pure tungsten heavy metal target is an anode itself. Tungsten heavy metal targets have the features of thickness, shiny surface.
Because of the features of Tungsten, Tungsten heavy metal target can be used as the cathode X-ray target in inflatable X-ray tube. Tungsten metal targets have the properties of uniformity in shape, good thermal conductivity, high melting point, vapor pressure, so tungsten metal target can be applied in glass, LCD, LED and electrical industries.

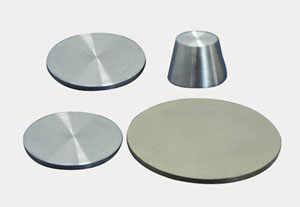

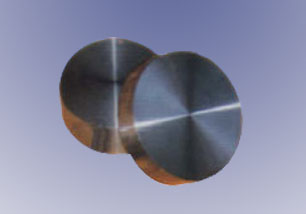

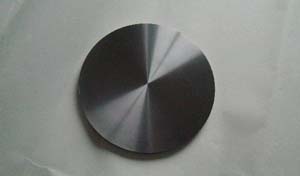

tungsten-heavy-metal-target-01 tungsten-heavy-metal-target-02 tungsten-heavy-metal-target-03

Specifications of Tungsten heavy metal target
Unit：mm

	Thickness	Width	Length	Parallelism	Verticality	Surface finish
Tungsten target	8.0~16.0	10~450	10~500	<0.05	<2o	<Ra0.8
	3.0~8.0	10~450	10~800	<0.05	<2o	<Ra0.8
	1.0~3.0	10~450	10~1200	<0.05	<2o	<Ra0.8
