Our glass molybdenum electrodes are formed by isostatic pressing, forging to various of types after sintering with medium frequency furnace and then turning, rolling, planning and milling. we can also offer different kinds of molybdenum electrodes as your requirements
We have produced this kind of molybdenum electrodes for decades, and spare no effort to the improvement of the electrodes' performance. With the excellent characteristics of high strength , resistant to oxidation under high temperature, long life, well corrosion resistance and difficult to stain glass, these high pure molybdenum electrodes have been widely used in many fields such as daily-use glass, optical glass, insulation material and glass fiber, and received good reputes.
Appearance: Silver gray metallic luster
No defects (lose side , lose corner , divide layer , crackle)
To bend or align according to the needs of users
Density: > 9.8g/cm³
purity : Mo> 99.95%
Dimension : (14-20) * (14-20) * L L< 500mm
Main applications: Molybdenum electrode is used as electro-heat equipment of the glass fiber kiln
The impurity content accords with GB3462-82 standard
Molybdenum electrode plate
Dark brown , silver gray metallic luster if washed by the alkali (produced according to user's request )
Purity : Mo> 99.95%
Dimension : (3 - 25)* (50 -500) *L L<800mm (Unit weight is not more than 40 kgs) special specification should be consulted by both parties
Main applications: Molybdenum electrode plate can be used as various kinds of heating equipment of glass fiber kiln , liquid-flow hole panel ,etc .
The impurity content accords with GB3876-83 standard

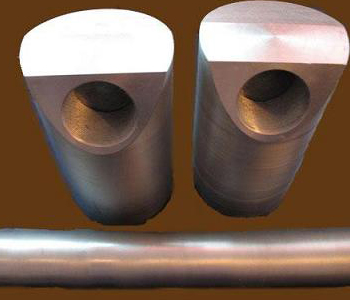

Molybdenum electrode bars
Appearance: Bright silver gray metallic luster . (process according to user's drawing , surface finish is higher)
purity : Mo> 99.93%
Density: > 10.15g/cm³
Unit weight: The special dimension of various kinds of Molybdenum electrodes under 70kgs is consulted by both parties.
Dimension: produced according to the needs of users : (φ20 - φ100) *L (mm)
Main applications: Molybdenum electrode bar is mainly used as the furnace , electric boosting glass kiln electrode , etc
The impurity content accords with the standard of GB/t17792-1999.
|Description||Code||Density g/cm3||Size of finished product (mm)|
|Molybdenum electrode bar||Mo-4.2||9.3||14 x 20 x (400-520) 17 x 17 x (400-520) 20 x 20 x (530-540)|
|Molybdenum electrodes plated||BMo-4.2||9.9||(60-160) x (160-500) x (3-7)|
|Molybdenum threaded rod||LGM||Dia(6-36) x (30-60)|
