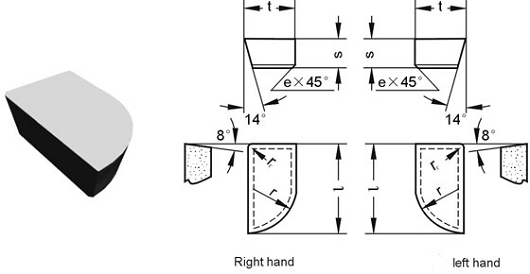

Weld Tips-Type A4

Consejos Soldadas Type A4

Type Dimension(mm) Approx Unit Weight(g)
Right Left l t s r rε e YG6 YG8 YT5 YT14
A406 / 6.0 5.0 2.5 5.0 0.5 / 1.0 0.9 0.8 0.7
A408 / 8.0 6.0 3.0 6.0 0.5 / 1.8 1.8 1.4 1.3
A410 A410Z 10.0 6.0 3.5 6.0 1.0 0.8 2.4 2.4 1.8 1.7
A412 A412Z 12.0 8.0 4.5 8.0 1.0 0.8 5.0 4.9 4.2 3.9
A416 A416Z 16.0 10.0 5.5 10.0 1.0 0.8 10.4 10.2 8.6 8.0
A420 A420Z 20.0 12.0 7.0 12.5 1.0 0.8 19.4 19.0 17.0 15.6
A425 A425Z 25.0 15.0 8.5 16.0 1.0 0.8 37.0 36.4 32.5 30.0
A430 A430Z 30.0 16.0 6.0 16.0 1.0 0.8 36.0 35.4 30.0 27.9
A430A A430AZ 30.0 16.0 9.5 16.0 1.0 0.8 54.2 53.2 47.0 43.7
A440 A440Z 40.0 18.0 8.0 18.0 1.0 0.8 72.8 71.4 62.0 57.7
A440A A440AZ 40.0 18.0 10.5 18.0 1.0 1.2 93.5 91.5 79.0 73.5
A450 A450Z 50.0 20.0 8.0 20.0 1.5 0.8 103.0 101.0 87.0 81.0
A450A A450AZ 50.0 20.0 12.0 20.0 1.5 1.2 151.0 148.0 127.0 118.5
