Weld Tips-Type A5

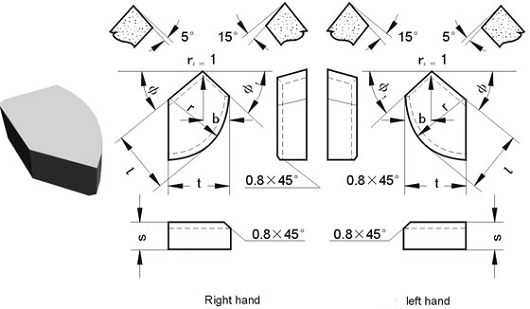

Brazed Tips-Type A5

Type Dimension(mm) Approx Unit Weight(g)
Right Left l t s b r Ф Ф1 YG6 YG8 YT5 YT14
A515 A515Z 15.0 10.0 4.5 5.0 10.0 45° 40° 7.2 7.0 5.9 5.3
A518 A518Z 18.0 12.0 5.5 4.0 12.0 45° 45° 11.4 11.3 9.8 8.7
