Ferramentas para madeira

Woodworking Tools

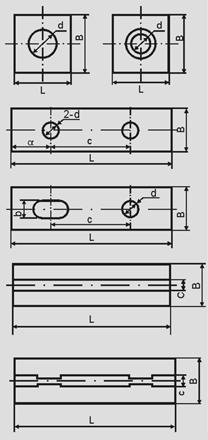

Reversible Knives

mm

Type L B H d α c n
1212/1.5 12.6 12.6 2.0 4.0     1
1414/1.2 14.9 14.9 2.0 8.35     1
1414/2.0 14.7 14.7 2.5 6.3     1
1515/2.5 15.7 15.7 3.0 6.2     1
2012 20.4 12.6 2.0 4.0     1
3012 30.5 12.6 2.0 4.0 8.2 14 2
4012 40.5 12.6 2.0 4.0 5.2 26 2
5012 50.4 12.6 2.2 4.0 12.2 26 2 (Off-Punch)
6012 60.6 12.6 2.2 4.0 17.3 26 2 (4)
82.5x6.5x1.75 82.5 6.5 1.75       Straight Groove
83x6x1.75 83 6.0 1.75
82.5x7x1.75 82.5 7.0 1.75

Woodworking Tools

The above are blanks.

mm

Type L B H d
1212 12 12 1.5 4

Woodworking Tools

mm

Type L B H d f
1414/1.2 14 14 1.2 8.3 0.6
1414/2 14 14 2 6.3 0.2
1415/1.5 13.4 13.4 1.5 6.5 0.2
1515/2.5 15 15 2.5 6.3 0.4

Woodworking Tools

mm

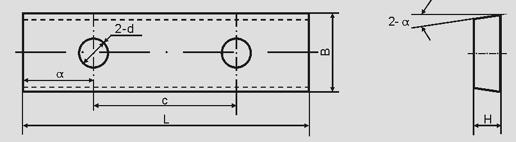

Type L B H d α (°) c n Remark
2012 20 12 1.5 4.0 35 1
3012 30 12 1.5 4.0 35 14 2
4012 40 12 1.5 4.0 35 26 2
5012 50 12 1.5 4.0 35 26 2 (4) Flat Hole
6012 60 12 1.5 4.0 35 26 2 (4)

Woodworking Tools

mm

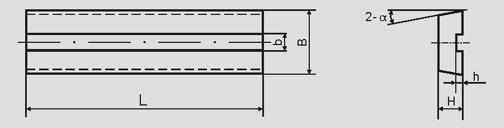

Type L B H h b α (°)
83x6x1.75 82 5.5 1.2 0.45 1.6 35

Woodworking Tools

mm

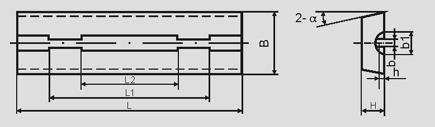

Type L B H L1 L2 h b b1 α (°)
82 82 5.5 1.1 70 48 0.5 1.5 1.8 40

Woodworking Tools
The above are finished products.
